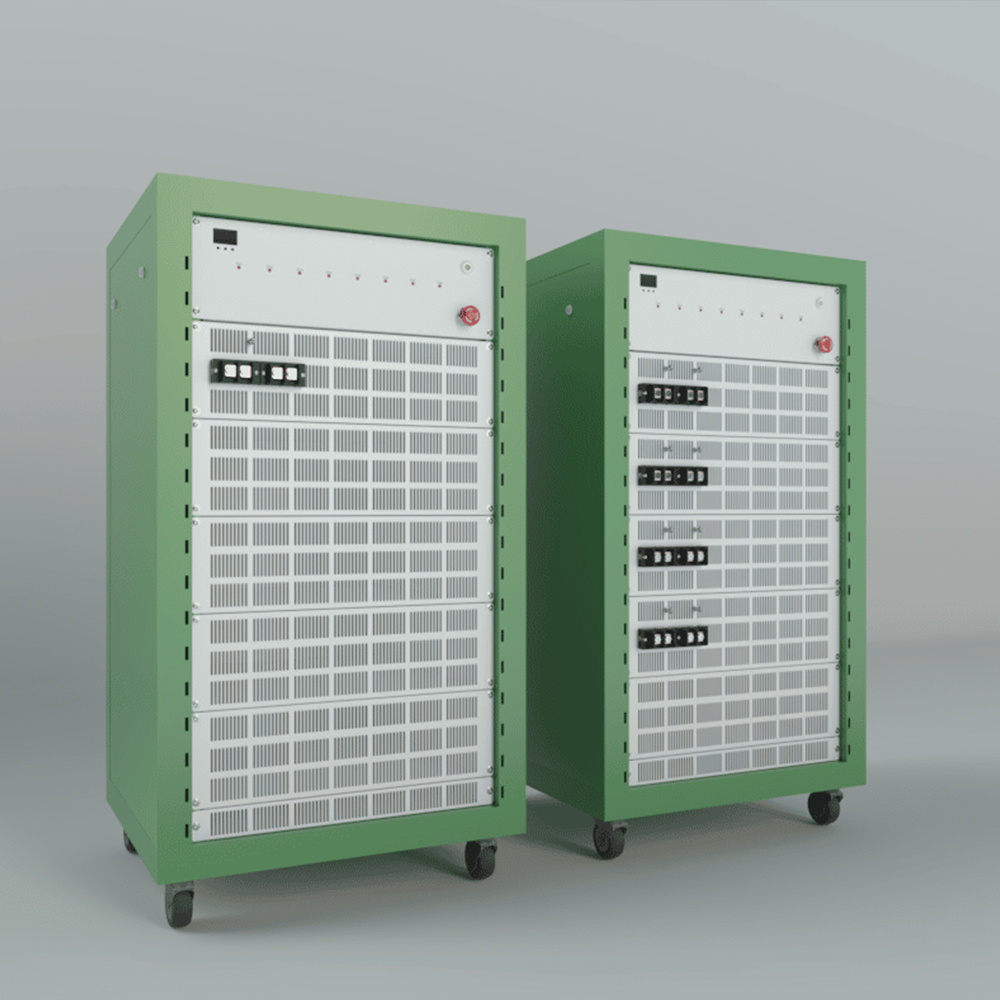

Discharge and charge equipment
60V20A-08CH
Equipment model: 60V20A-08CH
Equipment specification: 60V / 20A
Number of equipment channels: 8
Control: independent of the channel control mode of each channel, four-wire system acquisition of current and voltage
The channel has a constant current source and a constant voltage
The source adopts a dual closed-loop structure
Input impedance: ≥1MΩ
Voltage
Voltage range
(1) 5V-60V load (device port)
(2) 5V-60V discharge (device port) minimum discharge voltage is related to line length
(2)Accuracy ±0.05% of FS, ambient temperature 15°C-35°C
Current (1) Current range
(1) Load 0.05A-20A (2) Discharge 0.05A-20A
(2) Accuracy ±0.05% of ambient temperature FS 15°C-35°C
(1) Single-channel output power 9600W
Stable 0.2% of SF
Current response time ≤10 ms data recording
(1) Recording frequency 1Hz
(2) Data recording conditions (1) Minimum time interval: 1S (2) Minimum voltage interval: 1mV (3) Minimum current interval: 1mA
Load mode Constant current load Constant voltage load
constant voltage load constant voltage constant power load
(2) Voltage current cut-off conditions, relative time capacity -△V
(1) Constant current discharge Constant power discharge Constant resistance discharge
(2) Voltage current cut-off conditions, relative time capacity, -△V
Pulse mode (optional)
(1) constant current charging mode constant power mode
(2) constant current discharging mode constant power mode
(3) It is recommended that the minimum pulse width be greater than 5S
(4) Voltage cut-off conditions relative time
DCIR (optional) Supports customized point selection for DCIR calculation
Cycle
(1) Loop test 399 commands can be defined and 65535 loops can be defined
(2) Loop nesting supports 5 layers of loop nesting
Software protection
(1) Power-down data protection support
(2) Supports continuous connection startup (should have UPS power supply)
(3) Overvoltage protection Undervoltage protection, capacity protection, overcurrent protection, undercurrent protection
(4) Reverse connection protection
Data export method: Excel, PDF
Cooling method: air-cooled
Equipment noise ≤50dB
Communication method with host computer network
2.equipment working environment requirements
Operating temperature range: 0 °C -40 °C
Storage temperature range: -10 °C -50 °C
Relative humidity of working environment: ≤70% RH (no water vapor condensation)
Relative humidity of storage environment: ≤80% RH (no water vapor condensation)
Active input power: 9.6kW
Input power: AC380V ±10% / 50Hz, other power specifications optional
Luminaire type: custom
5V6A-80CH
Technical parameters:
Equipment model : ANQ-5V6A-80CH
Equipment specification: 5V / 6A
Number of equipment channels: 80
Channel control mode: independent control of each channel, four-wire current and voltage system acquisition
Channel characteristics: constant current source and constant voltage source adopt a double closed-loop structure
Input impedance: ≥1MΩ
Voltage:
(1) Voltage range (1) Charge 5V-60V (device port)
(2) Discharge 0-5V (device port) minimum discharge voltage is related to line length
(2) Accuracy ±0.05% of FS, ambient temperature 15°C-35°C
Current:
(1) Current range
(1) Charge 0.02A-6A (2) Discharge 0.02A-6A
(2) Accuracy ±0.05% of ambient temperature FS 15°C-35°C
Features:
(1) Single-channel output power 30W
(2) Stability 0.2% FS
Current response time: ≤10ms
Data recording:
(1) Recording frequency 1Hz
(2) Data recording conditions
(1) Minimum time interval: 1S
(2) Minimum voltage interval: 1mV
(3) Minimum current interval: 1mA
Charger:
(1) Charging mode Constant current charging constant voltage charging, constant current constant voltage charging, constant power charging
(2) Cut-off conditions voltage, current, relative time, capacity, -△V
Discharge :
(1) Discharge mode Constant current discharge, constant power discharge, constant resistance discharge
(2) Switching conditions voltage, current, relative time, capacity, -△V
Pulse mode (optional):
(1) constant current charging mode, constant power mode
(2) constant current discharging mode, constant power mode
(3) It is recommended that the minimum pulse width be greater than 5S
(4) cut-off condition voltage, relative time
DCIR (optional) Supports customized point selection for DCIR calculation
Cycle
(1) Loop test 399 commands can be defined, and 65535 loops can be defined
(2) Loop nesting supports 5 layers of loop nesting
Protect
(1) Software protection Power-down support Data protection
(2) Continuous connection start support (should have UPS power)
(3) Overvoltage protection, undervoltage protection, capacitance protection, overcurrent protection, undercurrent protection
(4) Reverse connection protection
Data export method: Excel, PDF
Cooling method: air-cooled
Equipment noise: ≤50dB
Communication method with host computer: network
Dimensions: length, width and height 650 * 600 * 1700mm
System requirements: Windows XP and higher
2.Equipment working environment requirements Operating temperature range: 0 °C -40 °C
Storage temperature range: -10 °C -50 °C
Relative humidity of working environment: ≤70% RH (no water vapor condensation)
Relative humidity of storage environment: ≤80% RH (no water vapor condensation)
Active input power: 2400W
Input power: AC220V ±10% / 50Hz, other power specifications optional
Fixture type: upper and lower thimbles for testing cylindrical batteries
Other requirements: software supports switching between Chinese and English
30V10A-08CH
- Technical parameters:
Equipment model: ANQ-30V10A-08CH
Equipment specification: 30V / 10A
Number of equipment channels: 8CH
Channel control mode: independent control of each channel, four-wire system acquisition of current and voltage
Channel characteristics: constant current source and constant voltage source adopt double closed-loop structure
Input impedance: ≥1MΩ
Voltage:
(1) Voltage range (1) Charge 20mV-30V (device port)
(2) Discharge 3V-30V (device port) minimum discharge voltage is related to line length
(2) Accuracy ±0.05% of ambient temperature FS 15°C-35°C
Current:
(1) Current range (1) Load 0.03A-10A
(2) Discharge 0.03A-10A (2) Accuracy ±0.05% of ambient temperature FS 15°C-35°C
Power of attorney:
(1) Single-channel output power 300W
(2) Stability 0.2% FS
Current response time: ≤10ms
Data logging :
(1) Recording frequency 1Hz (2) Data recording conditions
(1) Minimum time interval: 1S (2) Minimum voltage interval: 1mV
(3) Minimum current interval: 1mA
Charger:
(1) Charging mode Constant current charging, constant voltage charging, constant current constant voltage charging, constant power charging
(2) Cut-off conditions voltage, current, relative time, capacity, -△V
Discharge :
(1) Discharge mode Constant current discharge, constant power discharge, constant resistance discharge
(2) Cut-off conditions voltage, current, relative time, capacity, -△V
Pulse mode (optional):
(1) Constant current charging mode, constant power mode
(2) Discharge constant current mode, constant power mode
(3) It is recommended that the minimum pulse width be greater than 5S
(4) Cut-off condition voltage, DCIR relative time (optional): Supports custom point selection for DCIR calculation
Cycle:
(1) Loop test 399 commands can be defined, and 65535 loops can be defined
(2) Loop nesting supports 5 layers of loop nesting
Protect:
(1) Software protection Support power off Data protection
(2) Support continuous connection startup (should have UPS power supply)
(3) Overvoltage protection, undervoltage protection, capacity protection, overcurrent protection, undercurrent protection
(4) Anti-reverse connection protection
Data export method: Excel, PDF
Cooling method: air cooling
Equipment noise: ≤50dB
Communication method with host computer: network
Dimensions: length, width and height 750 * 700 * 650mm
System requirements: windows XP and above
2.Equipment working environment requirements:
Indicator element: Indicator parameters
Operating temperature range: 0 °C -40 °C
Storage temperature range: -10 °C -50 °C
Relative humidity of working environment: ≤70%RH (no water vapor condensation)
Relative humidity of storage environment: ≤80%RH (no water vapor condensation)
Input active power: 2400W
Input power: AC220V ±10% / 50Hz, other power specifications are optional
Clamp type: alligator clips
5V100A-08CH
XXX1. Technical parameters:
Equipment model: ANQ-5V100A-08CH
Equipment specification: 5V /100A
Number of equipment channels: 8
Channel control mode: independent control of each channel, four-wire system acquisition of current and voltage
Channel characteristics: constant current source and constant voltage source adopt a double closed-loop structure
Input impedance: ≥1MΩ
Voltage:
(1) Voltage range
(1) Charge 20mV-5V (device port)
(2) Discharge 0.75V-5V (device port), minimum discharge voltage is related to line length
(2) Accuracy ±0.05% of ambient temperature FS 15°C-35°C
Current:
(1) Current range (1) Load 1A-100A
(2) Discharge 1A-100A
(2) Accuracy ±0.05% of ambient temperature FS 15°C-35°C
Power of attorney:
(1) Single channel output power 500W
(2) Stability 0.2% of FS
Current response time: ≤10ms
Data recording:
(1) Recording frequency 1Hz
(2) Data recording conditions
(1) Minimum time interval: 1S
(2) Minimum voltage interval: 1mV
(3) Minimum current interval: 1mA
Charger:
(1) Charging mode Constant current charging, constant voltage charging, constant current constant voltage charging, constant power charging
(2) Cut-off conditions voltage, current, relative time, capacity, -△V
Discharge :
(1) Discharge mode Constant current discharge, constant power discharge, constant resistance discharge
(2) Cut-off conditions voltage, current, relative time, capacity, -△V
Pulse mode (optional):
(1) Constant current charge mode, constant power mode
(2) Constant current discharge mode, constant power mode
(3) It is recommended that the minimum pulse width be greater than 5S
(4) Voltage cut-off conditions, relative time
DCIR (optional): supports customized point selection for DCIR calculation
Cycle:
(1) Loop test 399 commands can be defined, and 65535 loops can be defined
(2) Loop nesting supports 5 layers of loop nesting
Protect:
(1) Software protection Power-down support Data protection
(2) Continuous connection start support (should have UPS power)
(3) Overvoltage protection, undervoltage protection, capacitance protection, overcurrent protection, undercurrent protection
(4)Reverse connection protection
Data export method: Excel, PDF
Cooling method: air-cooled
Equipment noise: ≤50dB
Communication method with host computer: network
System requirements: windows XP and higher
2.Equipment working environment requirements:
Indicator element: Indicator parameters
Operating temperature range: 0 °C -40 °C
Storage temperature range: -10 °C -50 °C
Relative humidity of working environment: ≤70% RH (no water vapour condensation)
Storage environment relative humidity: ≤80% RH (no water vapour condensation)
Active input power: 4kW
Input power: AC380V ±10% / 50Hz, other power specifications are optional
Luminaire type: customized
